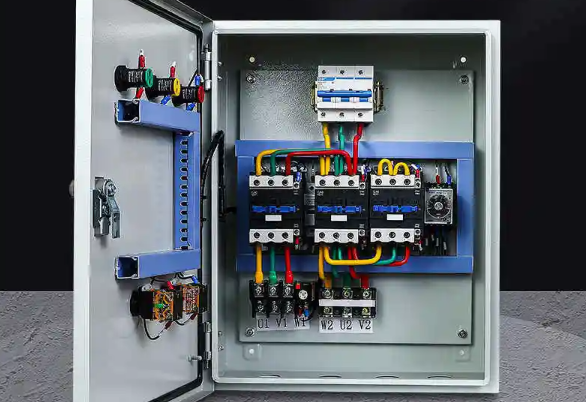

Pump Motor Starter Cabinet

Circuit Breaker: Adopts Chint brand models such as QF0 and QF1, serving as core circuit protection components. It automatically cuts off the power loop upon overload, short circuit, undervoltage and other faults to protect motors and electrical parts from damage.

Contactor: Controls on-off of the main circuit to realize automatic motor start and stop. It coordinates with other components to execute complex control logic including star-delta starting and ensure steady equipment operation.

Time Relay: A key part for star-delta starting. It precisely controls the switching time from star connection to delta connection, enabling smooth motor startup and reducing impact of starting current on equipment and power grid.

Intermediate Relay: Available in models 1KA, 2KA, 3KA and more. It amplifies, converts and transmits signals, expands contact quantity and load capacity of control circuits, and enhances system flexibility and stability.

Star-Delta Starting: Applicable to motors of various power ratings. The motor runs in star connection at startup to lower starting current and minimize grid impact. It automatically switches to delta connection for normal operation after speed rises. This method protects the motor, extends service life and cuts startup power consumption.

Motor Monitoring: The built-in monitoring system collects real-time data of current, voltage, temperature and other parameters. Alarms will be triggered once abnormalities occur, allowing timely troubleshooting and guaranteeing uninterrupted production.

High Safety and Reliability: Multiple protective measures effectively handle electrical faults in chemical industry, safeguard motors and related devices, and prevent production accidents caused by electrical failures.

Strong Adaptability: Compatible with motors of diverse power levels to meet varied startup demands. The robust cabinet enables stable long-term operation in harsh environments with heavy dust and slight corrosion.

Easy Operation: The intuitive interface and clear indicator lights help operators finish startup, shutdown and monitoring work effortlessly. It lowers error risks and improves overall working efficiency.
